This tutorial guides you through adding a codeph (code phrase) element to a DITA XML topic.

Overview

By the end of this tutorial, you will be able to:

  • Explain the purpose and usage of code phrase elements in DITA XML.
  • Identify appropriate locations to use codeph elements in DITA documents.
  • Add new codeph elements to a DITA concept document using the Oxygen XML editor.
  • Apply different methods for inserting codeph elements in Oxygen.
  • Mark up inline code snippets and programming terms in DITA XML.

Background

In DITA, a <codeph> element represents an inline phrase of code. It’s used to semantically identify small pieces of computer code that appear within the flow of text. Common uses include marking up:

  • Variable names (e.g., <codeph>maxConnections</codeph>)
  • Function or method names (e.g., <codeph>calculateTotal()</codeph>)
  • Command names (e.g., run <codeph>npm install</codeph>)
  • Filenames or paths (e.g., open <codeph>src/main.js</codeph>)
  • Short code snippets or keywords that fit naturally within a sentence (e.g., the <codeph>public static void</codeph> declaration).

Use <codeph> to wrap these code phrases directly a paragraph (<p>).

<codeph> is an inline element.

Add a <codeph> element

  1. Open the concept topic you edited in The p element.

  2. Click between the closing <p> tag and the closing <conbody> tag to place the cursor.

  3. Add a new <p> element.

  4. Type the following text inside the new <p> element: A paragraph in text mode looks like this:

    Ensure to leave a space after the colon.

  5. Add a new <codeph> element.

  6. Type the following inside the <codeph> element: <p>Hello</p>

  7. Save the file.

Expected result

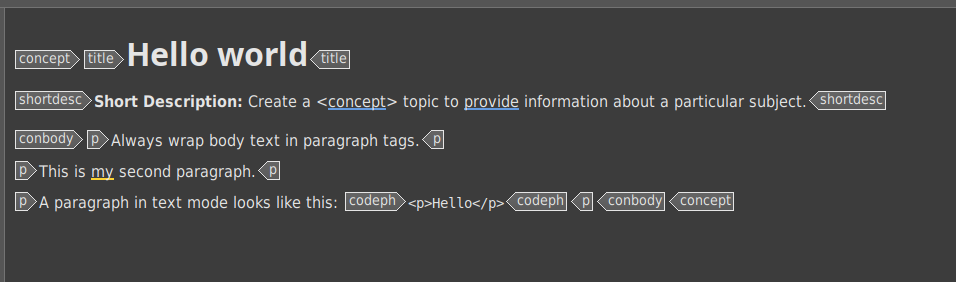

Result of the codeph tutorial
